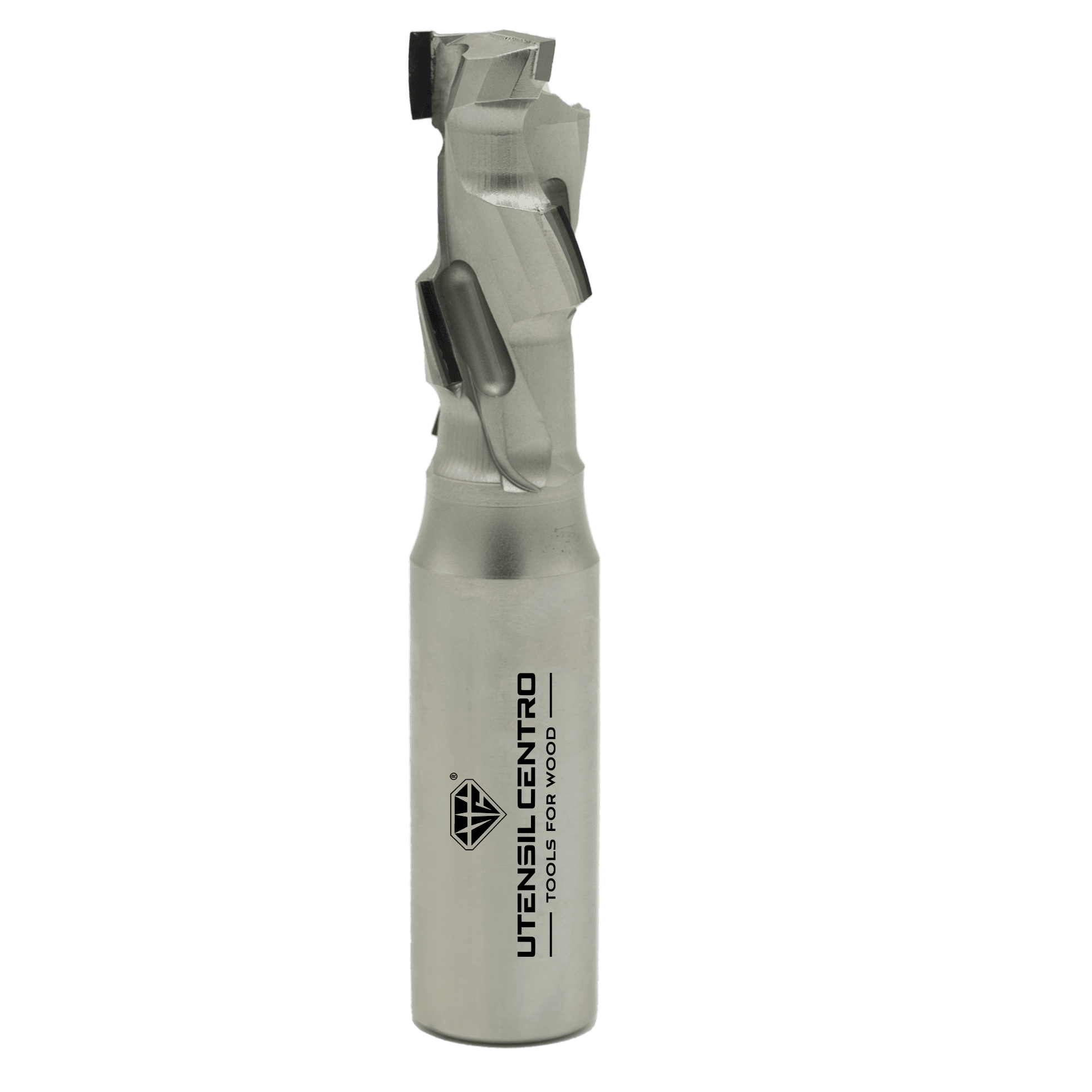

Diamond CMT router cutters with shear angle

Show All Variations

€107,73 – €287,31 VAT included

SKU: 800 Category:
Your All Available Variations
Code D I S L Z DX/SX Price Stock Action
800.0825.75 8 mm. 25 mm. 8 75 mm. 3+1HM dx
€131,17 VAT included
(131 pt)
800.0825.75-A12 8 mm. 25 mm. 12 75 mm. 3+1HM dx
€131,17 VAT included
(131 pt)
800.0825.76 8 mm. 25 mm. 8 75 mm. 3+1HM sx
€131,17 VAT included
(131 pt)
800.0825.76-A12 8 mm. 25 mm. 12 75 mm. 3+1HM sx
€131,17 VAT included
(131 pt)
800.1025.75 10 mm. 25 mm. 12 72 mm. 3+1HM dx
€107,73 VAT included
(108 pt)
800.1025.75-A10 10 mm. 25 mm. 10 72 mm. 3+1HM dx
€131,17 VAT included
(131 pt)
800.1025.76 10 mm. 25 mm. 12 72 mm. 3+1HM sx
€107,73 VAT included
(108 pt)
800.1025.76-A10 10 mm. 25 mm. 10 72 mm. 3+1HM sx
€131,17 VAT included
(131 pt)
800.1225.75 12 mm. 25 mm. 12 75 mm. 3+1HM dx
€107,73 VAT included
(108 pt)
800.1225.76 12 mm. 25 mm. 12 75 mm. 3+1HM sx
€107,73 VAT included
(108 pt)
800.1235.75 12 mm. 35 mm. 12 85 mm. 4+1HM dx
€143,67 VAT included
(144 pt)
800.1235.76 12 mm. 35 mm. 12 85 mm. 4+1HM sx
€143,67 VAT included
(144 pt)
800.12725.75 12,7 mm. 25 mm. 12,7 75 mm. 3+1HM dx
€131,17 VAT included
(131 pt)
800.12725.76 12,7 mm. 25 mm. 12,7 75 mm. 3+1HM sx
€131,17 VAT included
(131 pt)
800.12745.75 12,7 mm. 45 mm. 12,7 105 mm. 5+1HM dx
€218,62 VAT included
(219 pt)
800.12745.76 12,7 mm. 45 mm. 12,7 105 mm. 5+1HM sx
€218,62 VAT included
(219 pt)
800.1535.75 15,87 mm. 35 mm. 15,87 93 mm. 4+1HM dx
€174,90 VAT included
(175 pt)
800.1535.76 15,87 mm. 35 mm. 15,87 93 mm. 4+1HM sx
€174,90 VAT included
(175 pt)
800.1545.75 15,87 mm. 45 mm. 15,87 105 mm. 5+1HM dx
€218,62 VAT included
(219 pt)
800.1545.76 15,87 mm. 45 mm. 15,87 105 mm. 5+1HM sx
€218,62 VAT included
(219 pt)
800.1625.75 16 mm. 25 mm. 16 85 mm. 3+1HM dx
€107,73 VAT included
(108 pt)
800.1625.76 16 mm. 25 mm. 16 85 mm. 3+1HM sx
€107,73 VAT included
(108 pt)
800.1635.75 16 mm. 35 mm. 16 93 mm. 4+1HM dx
€143,67 VAT included
(144 pt)
800.1635.76 16 mm. 35 mm. 16 93 mm. 4+1HM sx
€143,67 VAT included
(144 pt)
800.1645.75 16 mm. 45 mm. 16 105 mm. 5+1HM dx
€179,56 VAT included
(180 pt)
800.1645.76 16 mm. 45 mm. 16 105 mm. 5+1HM sx
€179,56 VAT included
(180 pt)
800.1825.75 18 mm. 25 mm. 20 85 mm. 3+1HM dx
€107,73 VAT included
(108 pt)
800.1825.76 18 mm. 25 mm. 20 85 mm. 3+1HM sx
€107,73 VAT included
(108 pt)
800.1835.75 18 mm. 35 mm. 20 93 mm. 4+1HM dx
€143,67 VAT included
(144 pt)
800.1835.76 18 mm. 35 mm. 20 93 mm. 4+1HM sx
€143,67 VAT included
(144 pt)
800.1845.75 18 mm. 45 mm. 20 105 mm. 5+1HM dx
€179,56 VAT included
(180 pt)
800.1845.76 18 mm. 45 mm. 20 105 mm. 5+1HM sx
€179,56 VAT included
(180 pt)
800.1855.75 18 mm. 55 mm. 20 115 mm. 6+1HM dx
€215,50 VAT included
(216 pt)
800.1855.76 18 mm. 55 mm. 20 115 mm. 6+1HM sx
€215,50 VAT included
(216 pt)
800.1925.75 19,05 mm. 25 mm. 19,05 85 mm. 3+1HM dx
€131,17 VAT included
(131 pt)
800.1925.76 19,05 mm. 25 mm. 19,05 85 mm. 3+1HM sx
€131,17 VAT included
(131 pt)
800.1945.75 19,05 mm. 45 mm. 19,05 105 mm. 5+1HM dx
€218,62 VAT included
(219 pt)
800.1945.76 19,05 mm. 45 mm. 19,05 105 mm. 5+1HM sx
€218,62 VAT included
(219 pt)
800.2025.75 20 mm. 25 mm. 20 85 mm. 3+1HM dx
€107,73 VAT included
(108 pt)
800.2025.76 20 mm. 25 mm. 20 85 mm. 3+1HM sx
€107,73 VAT included
(108 pt)
800.2035.75 20 mm. 35 mm. 20 93 mm. 4+1HM dx
€143,67 VAT included
(144 pt)
800.2035.76 20 mm. 35 mm. 20 93 mm. 4+1HM sx
€143,67 VAT included
(144 pt)
800.2045.75 20 mm. 45 mm. 20 105 mm. 5+1HM dx
€179,56 VAT included
(180 pt)
800.2045.76 20 mm. 45 mm. 20 105 mm. 5+1HM sx
€179,56 VAT included
(180 pt)
800.2055.75 20 mm. 55 mm. 20 115 mm. 6+1HM dx
€215,50 VAT included
(216 pt)
800.2055.76 20 mm. 55 mm. 20 115 mm. 6+1HM sx
€215,50 VAT included
(216 pt)
800.2065.75 20 mm. 65 mm. 20 123 mm. 7+1HM dx
€251,39 VAT included
(251 pt)
800.2065.76 20 mm. 65 mm. 20 123 mm. 7+1HM sx
€251,39 VAT included
(251 pt)
800.2072.75 20 mm. 72 mm. 20 128 mm. 8+1HM dx
€287,31 VAT included
(287 pt)
800.2072.76 20 mm. 72 mm. 20 128 mm. 8+1HM sx
€287,31 VAT included
(287 pt)
800.2525.75 25 mm. 25 mm. 25 90 mm. 3+1HM dx
€112,44 VAT included
(112 pt)
800.2525.76 25 mm. 25 mm. 25 90 mm. 3+1HM sx
€112,44 VAT included
(112 pt)
800.2535.75 25 mm. 35 mm. 25 100 mm. 4+1HM dx
€149,91 VAT included
(150 pt)
800.2535.76 25 mm. 35 mm. 25 100 mm. 4+1HM sx
€149,91 VAT included
(150 pt)
800.2545.75 25 mm. 45 mm. 25 110 mm. 5+1HM dx
€187,39 VAT included
(187 pt)
800.2545.76 25 mm. 45 mm. 25 110 mm. 5+1HM sx
€187,39 VAT included
(187 pt)
800.2555.75 25 mm. 55 mm. 25 120 mm. 6+1HM dx
€224,87 VAT included
(225 pt)
800.2555.76 25 mm. 55 mm. 25 120 mm. 6+1HM sx
€224,87 VAT included
(225 pt)
800.2565.75 25 mm. 65 mm. 25 130 mm. 7+1HM dx
€262,32 VAT included
(262 pt)
800.2565.76 25 mm. 65 mm. 25 130 mm. 7+1HM sx
€262,32 VAT included
(262 pt)
800.2572.75 25 mm. 72 mm. 25 135 mm. 8+1HM dx
€262,32 VAT included
(262 pt)
800.2572.76 25 mm. 72 mm. 25 135 mm. 8+1HM sx
€262,32 VAT included
(262 pt)

Description

Ideal for contouring and sectioning hard and abrasive materials such as laminates, MDF and the ennobled. To be included on or with chucks for machining centers, point/point machines and CNC routers.



TECHNICAL DETAILS:

  • Super strength steel
  • DP cutting edge.
  • HW plunging tip for diagonal plunge-cutting (Z-axis tool entrance)
  • Resharpenable cutter (max 3 times).
  • Max feed speed 5 m/min.

Additional information

Weight 0.117 kg
D

I

, , , , , ,

S

, , , , , , , ,

L

, , , , , , , , , , ,

Z
DX/SX

,
