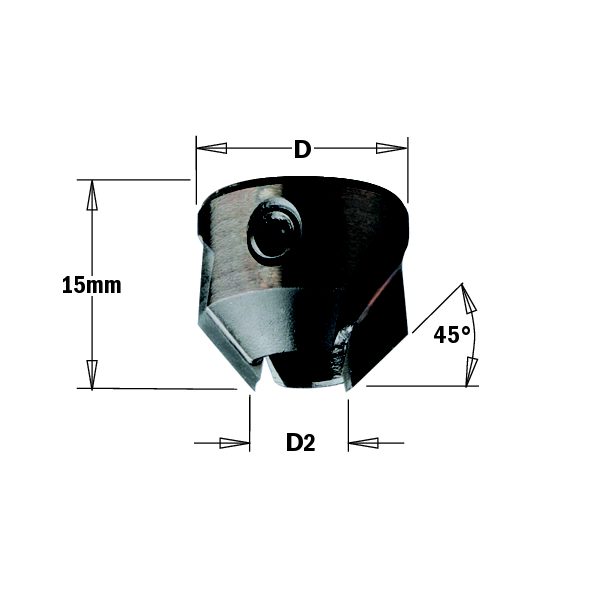

Countersinks for 4 flutes dowel drills

22,92 VAT included

SKU: 316 HW Category:
Your All Available Variations
Code D L Material DX/SX Larg. Z DMIN Price Stock Action
316.040.11 16 mm. 15 mm. HW dx 25 mm. 2 4 mm.
22,92 VAT included
(23 pt)
316.040.12 16 mm. 15 mm. HW sx 25 mm. 2 4 mm.
22,92 VAT included
(23 pt)
56
316.050.11 16 mm. 15mm mm. HW dx 25 mm. 2 5 mm.
22,92 VAT included
(23 pt)
316.050.12 16 mm. 15 mm. HW sx 25 mm. 2 5 mm.
22,92 VAT included
(23 pt)
7
316.060.11 16 mm. 15 mm. HW dx 25 mm. 2 6 mm.
22,92 VAT included
(23 pt)
316.060.12 16 mm. 15 mm. HW sx 25 mm. 2 6 mm.
22,92 VAT included
(23 pt)
316.070.11 16 mm. 15 mm. HW dx 25 mm. 2 7 mm.
22,92 VAT included
(23 pt)
58
316.070.12 16 mm. 15 mm. HW sx 25 mm. 2 7 mm.
22,92 VAT included
(23 pt)
11
316.080.11 18 mm. 15 mm. HW dx 25 mm. 2 8 mm.
22,92 VAT included
(23 pt)
316.080.12 18 mm. 15 mm. HW sx 25 mm. 2 8 mm.
22,92 VAT included
(23 pt)
316.090.11 18 mm. 15 mm. HW dx 25 mm. 2 9 mm.
22,92 VAT included
(23 pt)
75
316.090.12 18 mm. 15 mm. HW sx 25 mm. 2 9 mm.
22,92 VAT included
(23 pt)
5
316.100.11 20 mm. 15 mm. HW dx 25 mm. 2 10 mm.
22,92 VAT included
(23 pt)
316.100.12 20 mm. 15 mm. HW sx 25 mm. 2 10 mm.
22,92 VAT included
(23 pt)
316.120.11 20 mm. 15 mm. HW dx 25 mm. 2 12 mm.
22,92 VAT included
(23 pt)
111
316.120.12 20 mm. 15 mm. HW sx 25 mm. 2 12 mm.
22,92 VAT included
(23 pt)
25

Description

For assembly on the shank of the drill. Adjustable depth. For use with the following parts: 306-307-308-309-373-374-375-338-339-340-341-342-343-344-346-352-353 HW.

TECHNICAL DETAILS:

  • Super-strength steel.
  • 2 precision ground carbide tipped cutting edges (Z2).
  • Direct clamp on the shank of the drills.

Additional information

Weight 0.422 kg
D
L

,

Material

DX/SX

,

Larg.

Z

DMIN

, , , , , , ,
