CMT Solid carbide dowel drills

21,4146,40 VAT included

SKU: 311.21/22 HWM Category:
Your All Available Variations

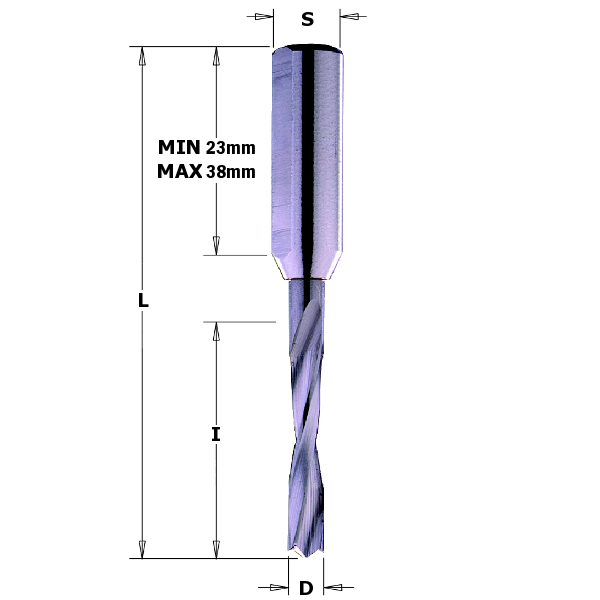

Code S D I L DX/SX Price Stock Action
311.013.20 10×45 13 mm. 5 mm. 70 mm. DX-SX
21,41 VAT included
(21 pt)
401
311.020.21 10×38 2 mm. 12 mm. 70 mm. dx
22,61 VAT included
(23 pt)
248
311.020.22 10×38 2 mm. 12 mm. 70 mm. sx
22,61 VAT included
(23 pt)
291
311.030.21 10×38 3 mm. 18 mm. 70 mm. dx
22,61 VAT included
(23 pt)
1975
311.030.22 10×38 3 mm. 18 mm. 70 mm. sx
22,61 VAT included
(23 pt)
1321
311.040.21 10×30 4 mm. 27 mm. 70 mm. dx
25,06 VAT included
(25 pt)
789
311.040.22 10×30 4 mm. 27 mm. 70 mm. sx
25,06 VAT included
(25 pt)
747
311.050.21 10×28 5 mm. 30 mm. 70 mm. dx
26,73 VAT included
(27 pt)
2830
311.050.22 10×28 5 mm. 30 mm. 70 mm. sx
26,73 VAT included
(27 pt)
1637
311.060.21 10×29 6 mm. 30 mm. 70 mm. dx
31,09 VAT included
(31 pt)
178
311.060.22 10×29 6 mm. 30 mm. 70 mm. sx
31,09 VAT included
(31 pt)
311.064.21 10×28 6,35 mm. 30 mm. 70 mm. dx
32,12 VAT included
(32 pt)
30
311.064.22 10×28 6,35 mm. 30 mm. 70 mm. sx
32,12 VAT included
(32 pt)
39
311.080.21 10×23 8 mm. 35 mm. 70 mm. dx
46,40 VAT included
(46 pt)
1760
311.080.22 10×23 8 mm. 35 mm. 70 mm. sx
46,40 VAT included
(46 pt)
1026

Description

Perfect for all materials and long-lasting performance!

CMT announces the new series of solid carbide boring bits, now available from their extensive industrial line. These bits are entirely made of premium quality super micrograin carbide from Ceratizit in Luxemburg.

The entire series offers several design features:

  • The unique tip has curved, negatively ground spurs to produce exceptionally clear bores with no rough edges. Centre point balanced
  • The cylindrical head is bigger than traditional tips and is extremely resistant to prolonged use
  • The plunge edge runs all the way to the centre of the bit to reduce drilling resistance and increase production speed. It lasts longer between sharpenings

The solid carbide construction guarantees an almost infinite number of resharpenings, and since it is a solid unit of carbide, it offers extra safety features

Ideal for hardwood and difficult composites such as particle boards, MDF and veneered wood.
Excellent performance on high-speed boring units and CNC routers.

TECHNICAL DETAILS:

  • Premium quality super-strength steel
  • HWM spiral portion with centre point.
  • 2 cutting edges (Z2).
  • 2 spiral flutes.
  • 2 curved, negatively ground spurs (V2).
  • Parallel shank with driving flat and adjustable screw length.



Boring bit 311.013.20 is for panel preboring.

Additional information

Weight 0.187 kg
S

, , , , ,

D
I

, , , , ,

L

DX/SX

, ,
