2 flute dowel drills for through holes

20,7050,91 VAT included

SKU: 314 HW Category:
Your All Available Variations

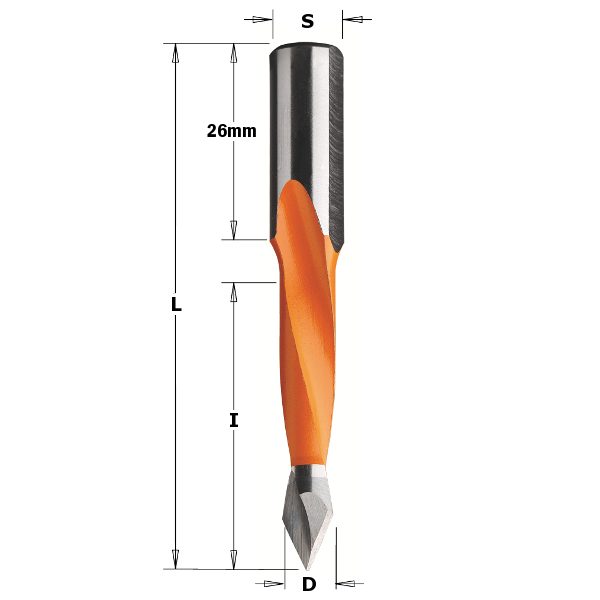

Code S D I L Material DX/SX Larg. Z Price Stock Action
314.040.11 10×26 4 mm. 30 mm. 70 mm. HW dx 93 mm. 2
24,42 VAT included
(24 pt)
280
314.040.12 10×26 4 mm. 30 mm. 70 mm. HW sx 93 mm. 2
24,42 VAT included
(24 pt)
400
314.047.11 10×26 4,76 mm. 35 mm. 70 mm. HW dx 93 mm. 2
24,58 VAT included
(25 pt)
198
314.047.12 10×26 4,76 mm. 35 mm. 70 mm. HW sx 93 mm. 2
24,58 VAT included
(25 pt)
187
314.050.11 10×26 5 mm. 35 mm. 70 mm. HW dx 93 mm. 2
20,70 VAT included
(21 pt)
314.050.12 10×26 5 mm. 35 mm. 70 mm. HW sx 93 mm. 2
20,70 VAT included
(21 pt)
616
314.055.11 10×26 5,55 mm. 35 mm. 70 mm. HW dx 93 mm. 2
24,58 VAT included
(25 pt)
50
314.055.12 10×26 5,55 mm. 35 mm. 70 mm. HW sx 93 mm. 2
24,58 VAT included
(25 pt)
64
314.060.11 10×26 6 mm. 35 mm. 70 mm. HW dx 93 mm. 2
22,05 VAT included
(22 pt)
249
314.060.12 10×26 6 mm. 35 mm. 70 mm. HW sx 93 mm. 2
22,05 VAT included
(22 pt)
124
314.064.11 10×26 6,35 mm. 35 mm. 70 mm. HW dx 93 mm. 2
24,58 VAT included
(25 pt)
20
314.064.12 10×26 6,35 mm. 35 mm. 70 mm. HW sx 93 mm. 2
24,58 VAT included
(25 pt)
137
314.070.11 10×26 7 mm. 35 mm. 70 mm. HW dx 93 mm. 2
23,79 VAT included
(24 pt)
314.070.12 10×26 7 mm. 35 mm. 70 mm. HW sx 93 mm. 2
23,79 VAT included
(24 pt)
46
314.080.11 10×26 8 mm. 35 mm. 70 mm. HW dx 93 mm. 2
22,68 VAT included
(23 pt)
60
314.080.12 10×26 8 mm. 35 mm. 70 mm. HW sx 93 mm. 2
22,68 VAT included
(23 pt)
495
314.090.11 10×26 9 mm. 35 mm. 70 mm. HW dx 93 mm. 2
24,90 VAT included
(25 pt)
234
314.090.12 10×26 9 mm. 35 mm. 70 mm. HW sx 93 mm. 2
24,90 VAT included
(25 pt)
192
314.095.11 10×26 9,52 mm. 35 mm. 70 mm. HW dx 93 mm. 2
28,55 VAT included
(29 pt)
66
314.095.12 10×26 9,52 mm. 35 mm. 70 mm. HW sx 93 mm. 2
28,55 VAT included
(29 pt)
22
314.100.11 10×26 10 mm. 35 mm. 70 mm. HW dx 93 mm. 2
24,42 VAT included
(24 pt)
277
314.100.12 10×26 10 mm. 35 mm. 70 mm. HW sx 93 mm. 2
24,42 VAT included
(24 pt)
320
314.120.11 10×26 12 mm. 35 mm. 70 mm. HW dx 88 mm. 2
28,16 VAT included
(28 pt)
314.120.12 10×26 12 mm. 35 mm. 70 mm. HW sx 88 mm. 2
28,16 VAT included
(28 pt)
119
314.127.11 10×26 12,7 mm. 35 mm. 70 mm. HW dx 88 mm. 2
50,91 VAT included
(51 pt)
54
314.127.12 10×26 12,7 mm. 35 mm. 70 mm. HW sx 88 mm. 2
50,91 VAT included
(51 pt)
82

Description

TECHNICAL DETAILS:

  • Super-strength steel.
  • Spiral portion coated with orange or black P.T.F.E.
  • HW head with precision balanced centre point.
  • 2 precision ground cutting edges (Z2).
  • 2 spiral flutes.
  • Parallel shank with driving flat and length adjusting screw.

Additional information

Weight 0.222 kg
S

D

I

,

L

Material

DX/SX

,

Larg.

,

Z
