Solid carbide up & downcut mortising bits

22,61272,88 VAT included

SKU: 190. Category:
Your All Available Variations

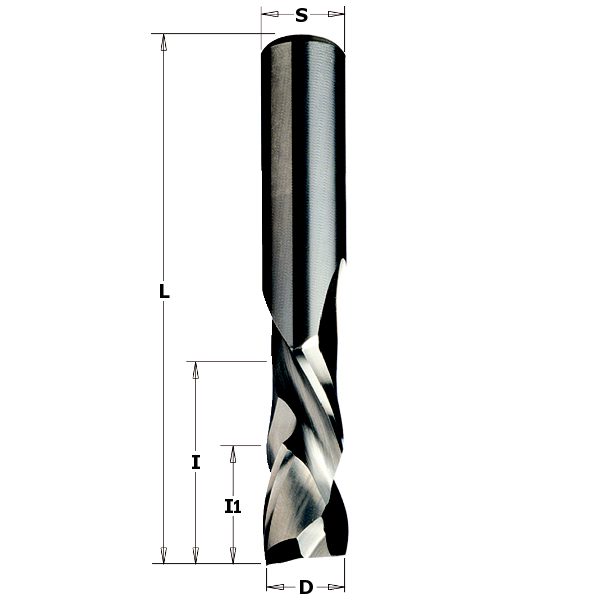

Code D I L S Z I1 Price Stock Action
190.008.11 6,35 mm. 22,2 mm. 63,5 mm. 6,35 2+2 6,35
41,55 VAT included
(42 pt)
213
190.040.11 4 mm. 15 mm. 50 mm. 4 1+1 7
22,61 VAT included
(23 pt)
268
190.050.11 5 mm. 22 mm. 60 mm. 5 1+1 8
28,16 VAT included
(28 pt)
204
190.060.11 6 mm. 22 mm. 60 mm. 6 1+1 8
30,85 VAT included
(31 pt)
583
190.080.11 8 mm. 32 mm. 80 mm. 8 2+2 7
58,29 VAT included
(58 pt)
1084
190.100.11 10 mm. 32 mm. 80 mm. 10 2+2 7
83,90 VAT included
(84 pt)
217
190.120.11 12 mm. 42 mm. 90 mm. 12 2+2 7
119,27 VAT included
(119 pt)
229
190.121.11 12 mm. 52 mm. 100 mm. 12 2+2 7
123,55 VAT included
(124 pt)
201
190.160.11 16 mm. 55 mm. 110 mm. 16 2+2 24
203,17 VAT included
(203 pt)
32
190.180.11 18 mm. 55 mm. 110 mm. 18 2+2 30
272,88 VAT included
(273 pt)
50
190.504.11 9,52 mm. 28,6 mm. 76,2 mm. 9,5 2+2 7
79,23 VAT included
(79 pt)
104
190.505.11 12,7 mm. 25,4 mm. 76,2 mm. 12,7 2+2 12
105,55 VAT included
(106 pt)
76
190.506.11 12,7 mm. 28,6 mm. 76,2 mm. 12,7 2+2 12
113,40 VAT included
(113 pt)
29
190.507.11 12,7 mm. 34,9 mm. 88,9 mm. 12,7 2+2 12
122,76 VAT included
(123 pt)
53
190.508.11 12,7 mm. 41,3 mm. 101,6 mm. 12,7 2+2 12
132,52 VAT included
(133 pt)
43
190.513.11 9,5 mm. 22,2 mm. 76,2 mm. 9,52 2+2 4,8
82,72 VAT included
(83 pt)
102
190.515.11 12,7 mm. 22,2 mm. 76,2 mm. 12,7 2+2 5,2
105,55 VAT included
(106 pt)
100
190.517.11 12,7 mm. 34,9 mm. 88,9 mm. 12,7 2+2 5,2
122,76 VAT included
(123 pt)
33

Description

Sharp technology with a new twist A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer. Increased feed rate and improved cutting quality for enhanced productivity with CMT!

TECHNICAL FEATURES:

  • -Premium quality HWM.
  • -2+2 spiral cutting edges (Z2+2).
  • -3+3 spiral cutting edges (Z3+3).

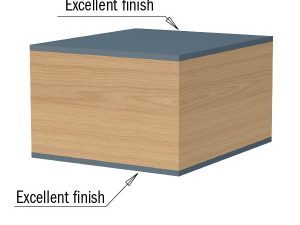

  • -Provide an excellent finish on both the upper and the lower side of the workpiece.

Additional information

Weight 0.189 kg
D

I

, , , , , , , , , , ,

L

, , , , , , , , ,

S

, , , , , , , , , , ,

Z

,

I1
