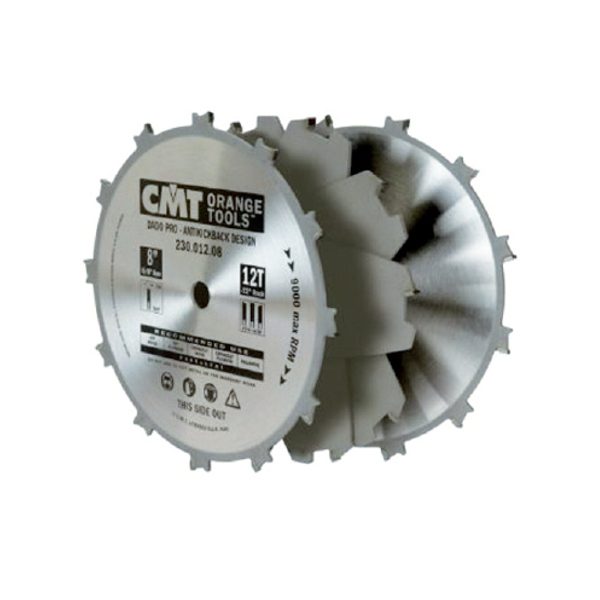

Precision dado

CMT thoroughly researched the shortcomings of "standard" dado sets and learned what cabinetmakers required most from an "ideal" dado. The result was the precision dado, designed with the following features:

• Anti-kickback design to reduce the possibility of overfeeding that can occur when cutting mass material.
• Splinter resistant cuts in veneer plywood, melamine and soft and hardwood.
• Four two-tooth chippers measuring 3,2mm (1/8") to keep the cut flat and virtually free from tear out.
• One two-tooth chipper measuring 1,6mm (1/16") to keep the cut flat and virtually free from tear out.
• Shim sets included for cuts between 6,35mm (1/4") & 20,63mm (13/16").
• Ideal for underpowered saws.

Safety precautions: always use both outside blades. Carbide teeth should never come into contact with each other.

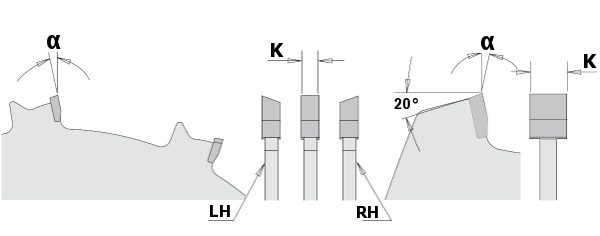

Drawing refers to inside blades.

L = Left blade.
R = Right blade
